Shade Sails in the UAE
Qala Aluminium designs, makes and installs shade sails across the UAE from its own workshop in Al Batayih, Sharjah. A twisted four-point villa sail of about 5 × 4.5 m with HDPE fabric, posts and footings costs about AED 5,700–11,600 installed; a single triangle starts from about AED 2,900. HDPE fabric costs about AED 180–320 per m², waterproof PVC about AED 350–600. You can design your sail in our free 3D designer, see the shade at any hour and get the price instantly.
A shade sail is tensioned fabric fixed at three or four points to posts or walls. Because the corners sit at different heights, a well-made sail twists into a tight, curved surface: it shades without a heavy roof, lets the breeze through and looks architectural.
We have built sails since 2004 over villa gardens and pools, school courtyards and play areas, and between buildings. Every sail is measured on site, cut to size and installed by our own team, with posts and fixings sized for the span.
- Fabric
- HDPE shade fabric, PVC or PVDF membrane
- Supports
- Galvanised raked posts or structural walls
- Shapes
- Triangles, twisted squares, layers and grids
- Clear height
- From 2.1 m; higher over play areas
- Fabric warranty
- 10 years on HDPE shade fabric
Types & options

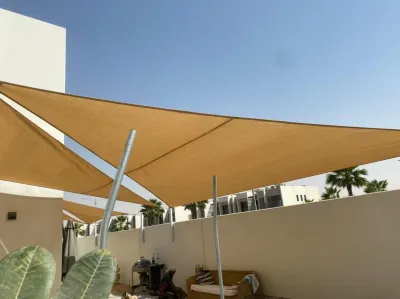

Twisted four-point sail (hypar)
Two high and two low corners: the most popular sail in the UAE, tight, crisp and good at shedding rain.
Single triangle
The simplest and most economical sail for a patio, an entrance or a pool corner.

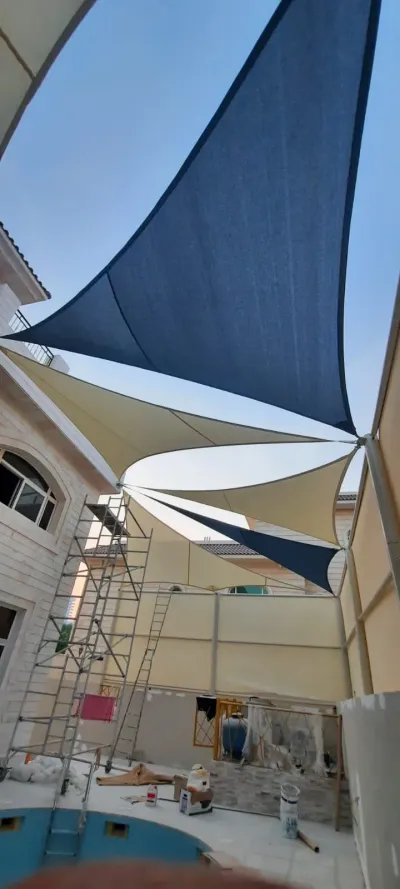

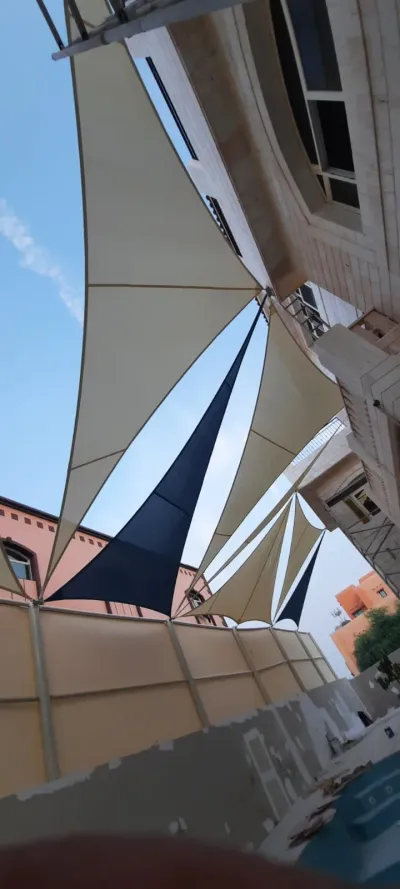

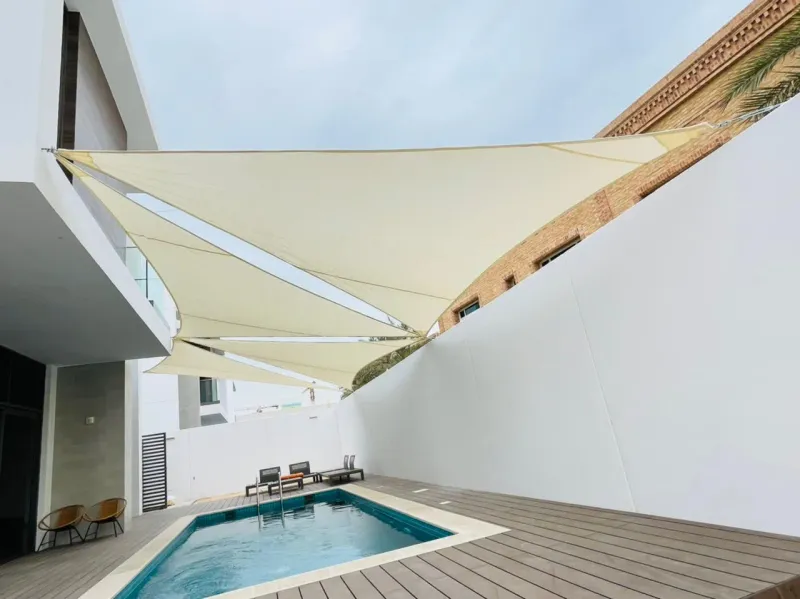

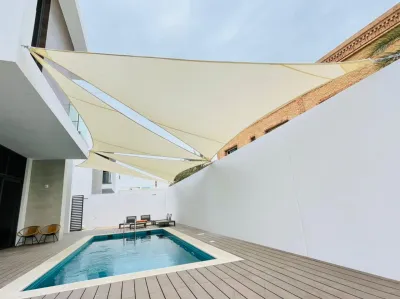

Layered sails
Two to four overlapping sails at stepped heights that share posts: a sculptural look over pools and large gardens.
Large tensioned sail
One large sail with stainless cable in the edges and a clear fall to one side, ready for waterproof fabric.

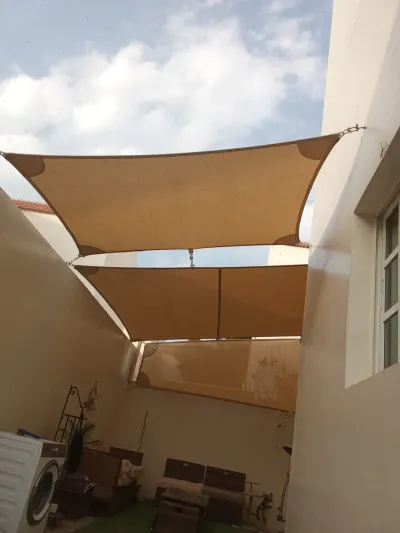

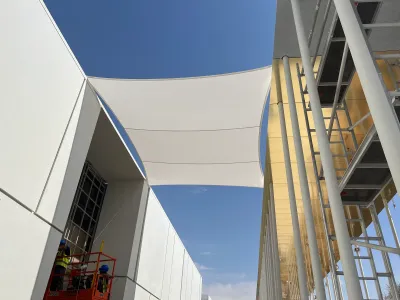

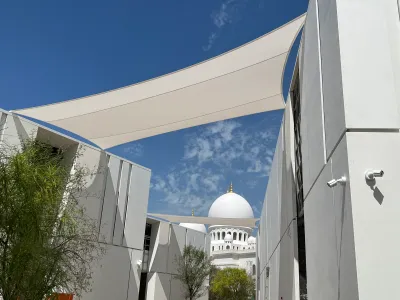

Wall-to-wall courtyard sails
Fixed to the walls on both sides with no posts in the way: courtyards, side yards and spaces between buildings.

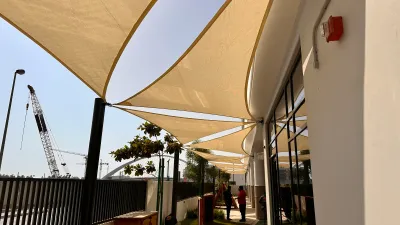

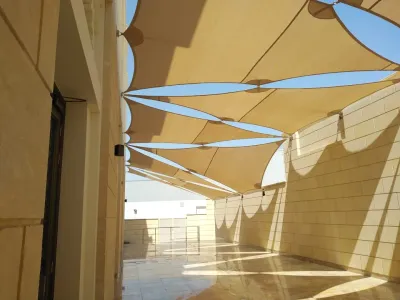

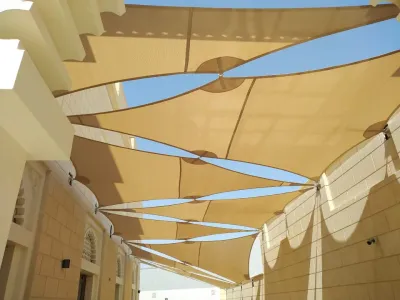

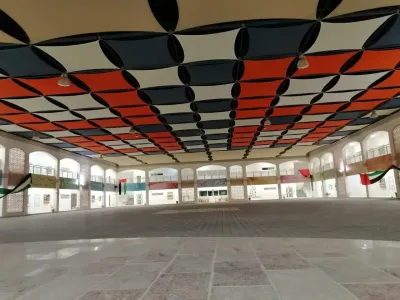

Sail grids for large areas

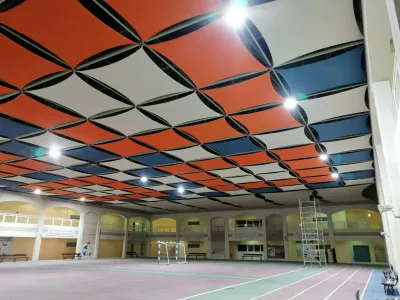

Repeating twisted modules on shared posts for schools, mosques, malls and hotel courtyards, in one colour or a bright mix.
Sails on a steel frame, mast sails and motorised sails
Sails inside a clean portal frame, a cantilever mast with a boom for an open pool edge, or a motorised sail that rolls away in strong wind.
- Made and installed by Qala since 2004, from our own workshop in Al Batayih, Sharjah
- Measured on site; fabric cut to size with curved edges and tensioned with stainless hardware
- Breathable HDPE fabric or waterproof PVC and PVDF membranes, in many colours
- Galvanised steel posts, raked and on concrete footings, or fixings on structural walls
- Large spans with stainless cable edges, and an engineering check for big or tall designs
- Free 3D design with an instant price, shade by hour and a view on your own photo
| Fabric | HDPE shade fabric, PVC or PVDF membrane |
|---|---|
| Supports | Galvanised raked posts or structural walls |
| Shapes | Triangles, twisted squares, layers and grids |
| Clear height | From 2.1 m; higher over play areas |
| Fabric warranty | 10 years on HDPE shade fabric |
| Fabrication | In-house, our Al Batayih workshop, Sharjah |
| Installation | Our own team, all seven Emirates |
Shade sail prices in the UAE
| Type | Price in AED (per design) |
|---|---|
| Twisted four-point sail (hypar) (5 × 4.5 m) | 5,700–11,600 |
| Single triangle sail (4.5 × 4 m) | 2,900–6,300 |
| Layered sails (2–4, overlapping) (8 × 5 m) | 6,800–13,900 |
| Large tensioned sail (cable edges) (7 × 5.5 m) | 9,900–19,500 |
| Wall-to-wall courtyard sails (6 × 8 m) | 7,300–13,200 |
| Sail grid (wave) for large areas (15 × 10 m) | 21,700–42,000 |
| Colourful sails for schools (12 × 8 m) | 19,600–39,500 |
| Sails on a steel frame (8 × 5 m) | 14,600–28,800 |
| Cantilever mast sail (5 × 5 m) | 5,600–11,200 |
| Motorised retractable sail (6 × 5 m) | 19,300–35,200 |
Indicative installed prices for the starting design of each model (size in brackets) with HDPE fabric, galvanised steel posts and footings, excl. VAT. Waterproof PVC costs about AED 350–600 per m² of fabric, PVDF about AED 500–750. Large or very tall designs are priced after an engineering check. Minimum order AED 1,500. Final price after a free site visit.
Projects: Shade Sails
View all projects
Questions about Shade Sails
How much does a shade sail cost in the UAE?
A twisted four-point villa sail of about 5 × 4.5 m with HDPE fabric, posts and footings costs about AED 5,700–11,600 installed. A single triangle starts from about AED 2,900. HDPE fabric is about AED 180–320 per m², waterproof PVC about AED 350–600. Try our 3D designer for an instant estimate of your own design.
Is a shade sail waterproof?
It depends on the fabric. Knitted HDPE shade fabric is breathable: it keeps the area cooler and is safer in wind, but light rain drips through — it is a sun shade, not a roof. PVC and PVDF membranes are waterproof; they need a steeper fall (about 1 m per 4–5 m) towards one low corner so the water runs off.
Why are the corners at different heights?
Alternating high and low corners give the fabric a double curve. That keeps it tight, stops flapping in the wind, sheds rain and dust, and gives the sail its architectural look. A flat sail sags and wears faster.
Can a sail be fixed to my house wall?
Yes, when the wall is structural (concrete or reinforced block). Sails pull hard on every corner, so we check the wall at the site visit and use posts where the wall is not strong enough.
What happens in strong wind?
We size the posts, footings and hardware for the span and UAE conditions. Like the fabric makers, we advise loosening or removing a sail before a severe storm or shamal warning; motorised sails can roll away automatically with a wind sensor.
Do you build sails for schools, nurseries and courtyards?
Yes. We build sail grids and colourful sails over school courtyards, play areas and nurseries, and wall-to-wall sails between buildings, with the clear height and fabric suited to each space.
Can I see the sail before ordering?
Yes. In our free 3D designer you choose the model, size, corner heights, fabric and colours, see the shade at any hour and month, place it on a photo of your space or see it at real size with your phone, and get the price instantly. Then send the design to us on WhatsApp.
